High-Density Storage: Supports up to 36 hot-swap 3.5” SATA/SAS drive bays for massive storage capacity.
Powerful Processing: Compatible with 3rd Gen Intel® Xeon® Scalable processors, supporting up to 270W TDP.

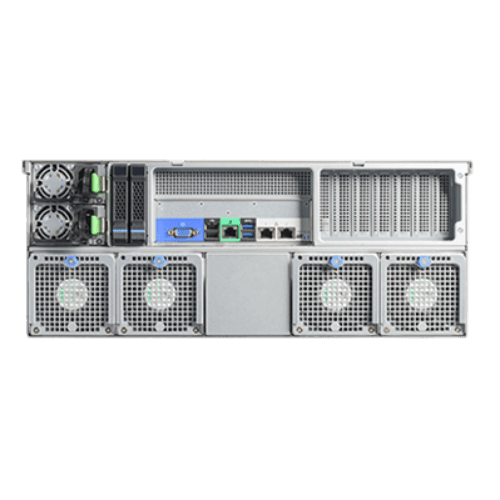

Robust Cooling System: Equipped with 4 hot-swappable PWM fans for efficient thermal management.
High-Speed Connectivity: Features dual 10GbE and dual 1GbE RJ45 ports for seamless networking.
Redundant Power Supply: 1+1 1200W 80-PLUS Platinum CRPS ensures reliable power delivery.
Advanced Management: ASPEED AST2500 BMC with IPMI 2.0, iKVM, and vMedia support for remote administration.
.png&w=3840&q=75)

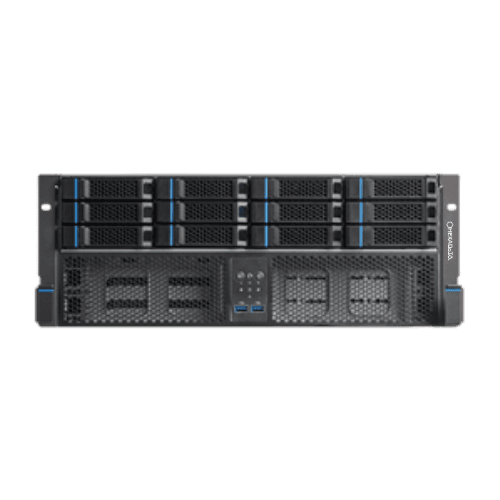

Hexadata 4U-36Bay High Density Storage Array
Next-Generation Data Storage Server Supports Intel® Xeon® Scalable Processor

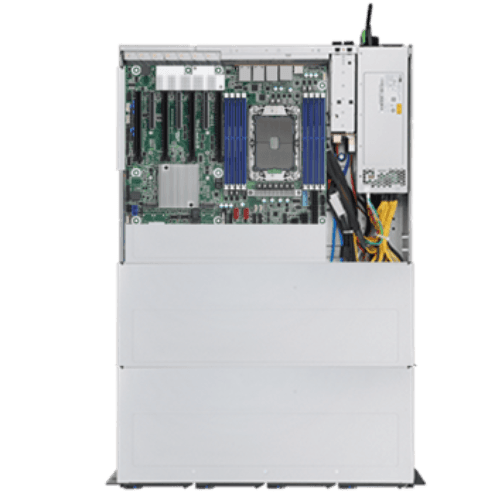

Hexadata HD-SW160 Version : ILX-01/36 is a high-density storage server powered by Intel® Xeon® Scalable Processor, features 36x 3.5’’ HDDs and 2x 2.5’’ SSDs hot-plug drives and hot-swappable fan module with easy serviceability in a simple 4U enclosure. Hexadata offers efficient computing power, storage capacity, and flexible I/O expansibility. This enables optimized workload for synergy across network, computing and storage. Provides a higher virtualized workload through put and number of VM density and helps to adapt quickly to changing business computing needs.
Enhanced Performance and Advanced Security
Hexadata is an industry-leading storage server that supports the new 3rd Gen Intel Xeon processor, with TDP of up to 270W. It provides exceptional performance with up to 32 cores, 64 lanes of PCIe Gen4 connectivity, and up to 4TB of memory across 8 DIMM slots. In addition, it has up to 12MB L3 cache per 8 core, helping accelerate memory intensive workloads. The embedded x86 silicon-level data enables Hexadata to offer Secure Memory Encryption (SME), which help secure the boot process, encrypt the entire main memory, and Secure Encrypted Virtualization (SEV), which can secure virtualized environments and container. Hexadata is well guarded, which helps decrease potential attack surfaces and enable better protectionof software and data.
Ultra-Density and Great Scalability

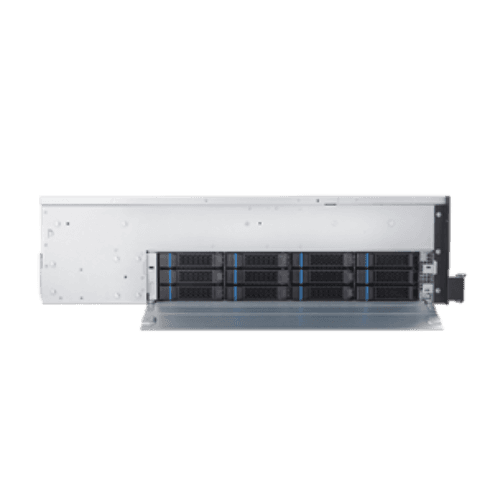

Hexadata offers a variety of hot-pluggable hybrid flash array choices within the 4U form factor. It’s composed of 36 LFF HDDbays and 2 rear side SSD bays and provides multiple storage options for greater flexibility and scalability. Including NVMesupportintherear for a caching layer, 1xM.2 connection, and a variety of storage AIC cardsBesides, it supports up to 4TB of DDR4 memory. By hosting 7x PCIe slots (x16 4 Nos. & 3 Nos. x8 for FHFL) without riser cards, Hexadata is an ideal hybrid system for warm storage and applicable for further storage applications. Optimizing the ratio of SSDs and HDDs can highly accelerate IOPS and through put performance while the excellence of storage capacity is delivered.
Flexible Network Configuration
Hexadata offers an Standard AIC NIC option, ranging from 10G Ethernet to 100G (optical or Base-T,). This allows high speed performance and I/O flexibility,catering to suitable demands of different application procedures.
The Intel Xeon 3rd generation scalable processors mark a significant advancement in the Intel Xeon lineup, offering a robust solution for businesses and hosting services seeking reliable, enterprise-grade performance at a cost-effective price. These processors are specifically designed to support continuous, 24x7 operations, making them ideal for small, medium & enterprisesized businesses (SMEs) and hosting environments that depend on uninterrupted service and server-gradereliability.
24x7Reliability:
The Intel Xeon 3rd generation scalable processors are built for continuous, round-the-clock operation, ensuring that critical business applications and hosting services remain operational without downtime.
Optimal Pricing:
These processors lower the cost threshold for businesses aiming to upgrade to a server platform with advanced features, without compromising on performance or reliability.
Advanced Manageability:
Hexadata enhances the manageability of server environments with its Hexadata Management Console (HMC) and Hexadata Server Management (RMM) software. HMC provides a comprehensive system management interface, while RMM offers powerful tools for monitoring and managing multiple servers,ensuring streamlined and efficient oversight. In corporating the Intel Xeon 3rd generation scalable processors into Hexadata solutions provides a balanced approach to growing business needs,combining high performance,reliability,and advanced management features at an optimal cost.
Support Server OS
Hexadata has validated platforms for compatibility with Windows Server, Ubuntu, and RHEL for greater manageability security.
Ease of Management
Hexadata servers come with Hexadata Management Console for IPMI management.
Continuous Operation
Systems have RAS features for continuous uptime and availability as users require and expect stable around the clock.
Energy Efficient
Our engineers have created a highly ecofriendly entry level server platform for Intel Xeon with fan profiles and a PSUwithefficiency > 89%.
Performance
Up to 40 cores and 80 threads, Intel Scalable Xeon 3 Generation can reach its potential in Hexadata platforms for mission-critical and general purpose server workloads.
Power Efficiency
Automatic Fan SpeedControl
Hexadata servers are enabled with Automatic Fan Speed Control to achieve the best cooling and power efficiency. Individual fan speeds will be automatically adjusted according to temperature sensors strategically placed in the servers.
Cold Redundancy
To take advantage of the fact that a PSU will run at greater power efficiency with a higher load, Hexadata has introduced a power management feature called Cold Redundancy for servers with N+1 power supplies. When the total system load falls lower than 40%, the system will automatically place one PSU into standby mode, resulting in a 10% improvement in efficiency.
Hardware Security
Optional TPM 2.0 Module
For hardware-based authentication, the passwords, encryption keys, and digital certificates are stored in a TPM module to prevent unwanted users from gaining access to your data. Hexadata TPM modules come in either a Serial Peripheral Interface or Low Pin Count bus.
Hexadata ManagementConsole
For management and maintenance of a server or a small cluster, users can use the Hexadata Management Console, which is preinstalled on each server. Once the servers are running, IT staff can perform real-time health monitoring and management on each server through the browser-based graphical user interface. In addition, the Hexadata Management Console also provides:
