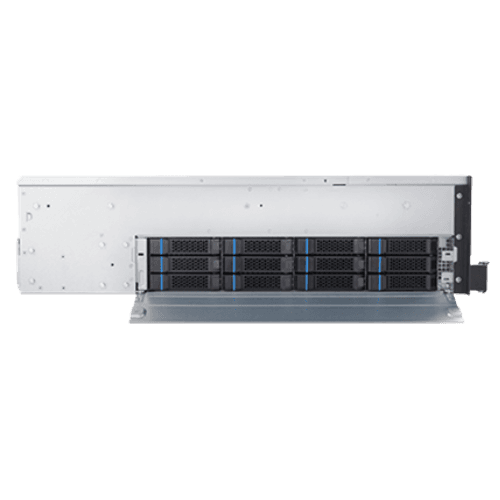

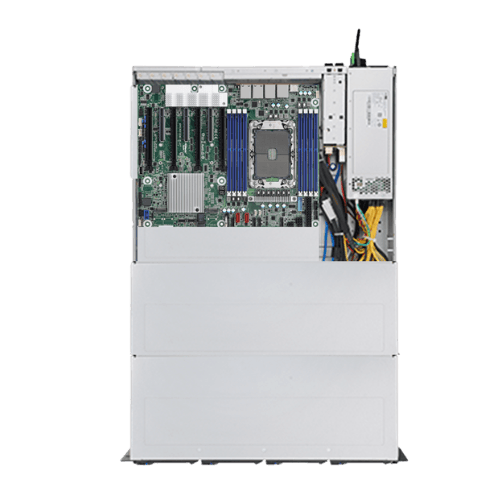

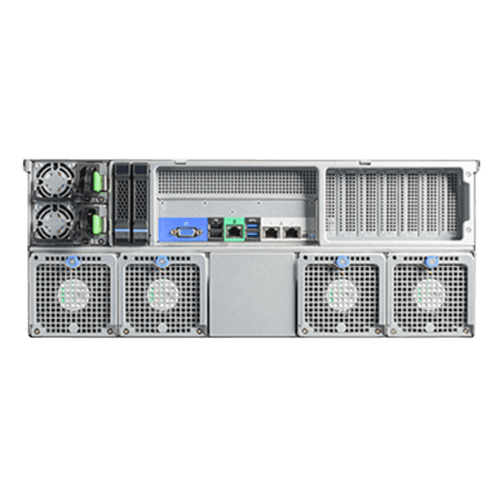

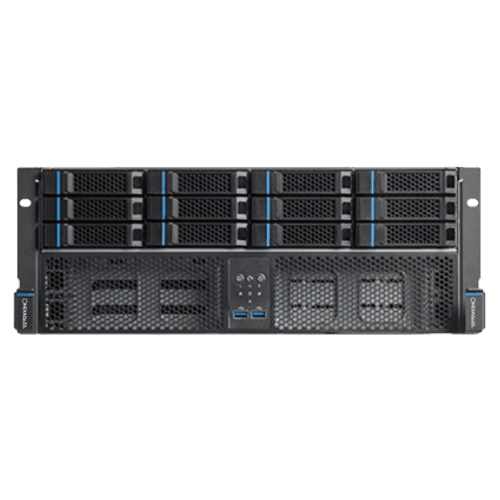

Hexadata HD-SW160 Version : ILX-01/36 is a high-density storage server powered by Intel® Xeon® Scalable Processor, features 36x 3.5’’ HDDs and 2x 2.5’’ SSDs hot-plug drives and hot-swappable fan module with easy serviceability in a simple 4U enclosure. Hexadata offers efficient computing power, storage capacity, and flexible I/O expansibility. This enables optimized workload for synergy across network, computing and storage. Provides a higher virtualized workload through put and number of VM density and helps to adapt quickly to changing business computing needs.
Enhanced Performance and Advanced Security
Hexadata is an industry-leading storage server that supports the new 3rd Gen Intel Xeon processor, with TDP of up to 270W. It provides exceptional performance with up to 32 cores, 64 lanes of PCIe Gen4 connectivity, and up to 4TB of memory across 8 DIMM slots. In addition, it has up to 12MB L3 cache per 8 core, helping accelerate memory intensive workloads. The embedded x86 silicon-level data enables Hexadata to offer Secure Memory Encryption (SME), which help secure the boot process, encrypt the entire main memory, and Secure Encrypted Virtualization (SEV), which can secure virtualized environments and container. Hexadata is well guarded, which helps decrease potential attack surfaces and enablebetter protectionof softwareand data.
Ultra-Density and Great Scalability
Hexadata offers a variety of hot-pluggable hybrid flash array choices within the 4U form factor. It’s composed of 36 LFF HDDbays and 2 rear side SSD bays and provides multiple storage options for greater flexibility and scalability. Including NVMesupportintherear for a caching layer, 1xM.2 connection, and a variety of storage AIC cardsBesides, it supports up to 4TB of DDR4 memory. By hosting 7x PCIe slots (x16 4 Nos. & 3 Nos. x8 for FHFL) without riser cards, Hexadata is an ideal hybrid system for warm storage and applicable for further storage applications. Optimizing the ratio of SSDs and HDD scan highly accelerate IOPS and through put performance while the excellence of storage capacity is delivered.
Flexible Network Configuration
Hexadata offers an Standard AIC NIC option, ranging from 10G Ethernet to 100G (optical or Base-T,). This allows high speed performance and I/O flexibility, catering to suitable demands of different application procedures. The Intel Xeon 3 rd generation scalable processors mark a significant advancement in the Intel Xeon lineup, offering a robust solution for businesses and hosting services seeking reliable, enterprise-grade performance at a cost-effective price. These processors are specifically designed to support continuous, 24x7 operations, making them ideal for small, medium & enterprisesized businesses(SMEs) and hosting environments that depend on uninterrupted service and server grade reliability.
24x7Reliability:
The Intel Xeon 3 rd generation scalable processors are built for continuous, round-the-clock operation, ensuring that critical business applications and hosting services remain operational without downtime.
OptimalPricing:
These processors lower the cost threshold for businesses aiming to upgrade to a server platform with advanced features, without compromising on performance or reliability.
Advanced Manageability:
Hexadata enhances the manageability of server environments with its Hexadata Management Console (HMC) and Hexadata Server Management (RMM) software. HMC provides a comprehensive system management interface, while RMM offers powerful tools for monitoring and managing multiple servers,ensuring streamlined and efficient oversight. Incorporating the Intel Xeon 3 rd generation scalable processors into Hexadata solutions provides a balanced approach to growing business needs,combining high performance,reliability,and advancedmanagement features at an optimal cost.
Support Server OS
Hexadata has validated platforms for compatibility with Windows Server, Ubuntu, and RHEL for greater manageability security.
Ease of Management
Hexadata servers come with Hexadata Management Console for IPMI management.
Continuous Operation
Systems have RAS features for continuous uptime and availability as users require and expect stable around the clock.
Energy Efficient
Our engineers have created a highly ecofriendly entry level server platform for Intel Xeon with fan profiles and a PSU with efficiency ≥89%.
Performance
Up to 40 cores and 80 threads, Intel Scalable Xeon 3 Generation can reach its potential in Hexadata platforms for mission-critical and general purpose server workloads.
Power Efficiency
Automatic Fan Speed Control
Hexadata servers are enabled with Automatic Fan Speed Control to achieve the best cooling and power efficiency. Individual fan speeds will be automatically adjusted according to temperature sensors strategically placed in the servers.
Cold Redundancy
To take advantage of the fact that a PSU will run at greater power efficiency with a higher load, Hexadata has introduced a power management feature called Cold Redundancy for servers with N+1 power supplies. When the total system load falls lower than 40%, the system will automatically place one PSU into standby mode, resulting in a 10% improvement in efficiency.
Hardware Security
Optional TPM 2.0 Module
For hardware-based authentication, the passwords, encryption keys, and digital certificates are stored in a TPM module to prevent unwanted users from gaining access to your data. Hexadata TPM modules come in either a Serial Peripheral Interface or Low Pin Count bus.
Hexadata ManagementConsole
For management and maintenance of a server or a small cluster, users can use the Hexadata Management Console, which is preinstalled on each server. Once the servers are running, IT staff can perform real-time health monitoring and management on each server through the browser-based graphical user interface. In addition, the Hexadata Management Console also provides:
Supported Open Source OS Stack
Openmediavaultis the next generation network attached storage (NAS) solution based on Debian Linux. It contains services like SSH, (S)FTP, SMB/CIFS, RSync and many more ready to use. Thanks to the modular design of the framework it can be enhanced via plugins. openmediavaultis primarily designed to be used in small offices or home offices, but is not limited to those scenarios. It is a simple and easy to use out-of-the-box solution that will allow everyone to install and administrate a Network Attached Storage without deeper knowledge.
Openmediavault includes the following key features :
Core - Based on Debian Linux Web based administration Easy system updates via Debian package management User management Scheduled jobs Multilanguage support Service announcement via DNSSD/Zeroconf Certificate management Plugin system
Monitoring - Syslog Watchdog S.M.A.R.T. SNMP (v1/2c/3) (read-only) Email notifications Proactive process and system state monitoring
Plugins - With the plugin system it is possible to add additional services, e.g. Antivirus DAAP/MPD/RSP server LVM Shairport SNMP FTP TFTP UPS USB Backup Microsoft OneDrive PhotoPrism FileBrowser S3 SSH web console.
Networking - Link aggregation Wake On Lan IPv6 support
Volume management - HDD power management (APM/AAM) GPT partitions EXT3/EXT4/XFS/JFS/Btrfs/… file system support Software RAID JBOD/0/1/5/6/… Quota (per volume) ACL Share management Snapshot management of shared folders on Btrfsfile systems Automatic scheduled tasks for Btrfs scrubbing and error checks
