HEXADATA’s servers are fully ready to support the second generation of Intel® Xeon® Scalable Family processors, codenamed “Cascade Lake”, which bring the following major enhancements:
HEXADATA’s second generation Intel® Xeon® Scalable family servers come ready to support Intel® Optane™ Persistent Memory, a revolutionary new product that re-defines traditional memory & storage architectures by enabling a large persistent memory tier between DRAM and SSDs, that’s higher capacity than DRAM and faster than SSDs, enabling the user to bring more data closer to the CPU for faster time for insight.
Optane Persistent Memory Modules (“PMem”) integrate seamlessly into existing DDR4 DIMM slots, and use Intel’s 3D Xpoint memory technology, which unlike DRAM retains data after power is removed. The modules will be available in capacities up to 512GB – a massive increase compared to the current maximum 128GB of industry-leading DDR4 memory sticks – and can be addressed by the OS or application either as memory (Memory Mode) or storage (Application Direct Mode).
To take advantage of the fact that a PSU will run at greater power efficiency with a higher loading, HEXADATA has introduced a power management feature called Cold Redundancy for servers with dual PSU. When the total system loading falls lower than 40%, the system will automatically place one PSU into standby mode, enabling the other PSU to take over the greater load. This can enable total system power efficiency savings of up to 10%.

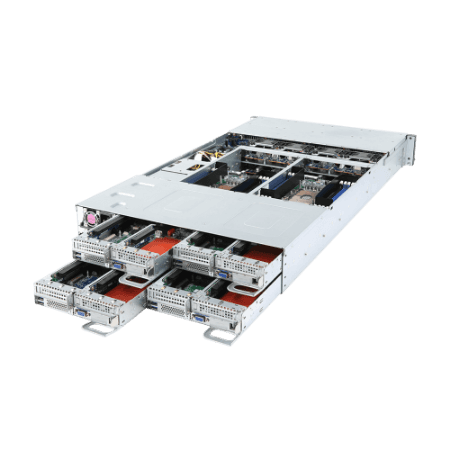

SCMP is a HEXADATA patented feature that will automatically force the system’s CPU to enter ULFM (ultra-low frequency mode for minimum power consumption) when the BMC is alerted to a PSU fault or error (such as power loss, power surge, overheating or a fan problem). This feature will prevent shutdown in systems with less than 1 + 1 PSU redundancy when one PSU is lost. In a 2U 4 Node server, only two nodes will be switched to low power mode, while two remaining nodes can continue normal operation. When the fault is resolved or the PSU is replaced, the system will automatically return to normal power mode.
HEXADATA SERVER Xeon Scalable servers are designed to guarantee high conversion efficiency regardless of load. Redundant 80 Plus ‘Titanium’ or ‘Platinum’ PSUs, combined with HEXADATA’s precision engineering, translates to super efficient power usage which maximizes the system’s power : performance ratio and reduces OPEX for the user.
HEXADATA continues to be responsive to market needs and to create user-friendly solutions, including:
HEXADATA’s passive components are carefully selected to guarantee a stable operating environment and allow the processors and the memory to deliver their maximum performance. HEXADATA’s server motherboards are built with long lasting components for a high degree of reliability and durability.
HEXADATA systems are thermally designed to provide optimal support for the maximum range of CPU SKUs. On certain models, high density fan designs enable efficient performance at up to 165W TDP.
