Engineering richer features in a revolutionary platform, Intel has made an incredible jump in processor performance in the business transformation journey. AI and deep learning performance will benefit from the built-in AI acceleration engines, while networking, storage, and analytics leverage other specialized accelerators in the 4th Gen Intel Xeon Scalable processor. Adding a host of new features to target a wide range of workloads, the new family of Xeon processors will deliver even better CPU performance and performance per watt, and do so on a PCIe 5.0 platform with 2x the prior gen throughput to greatly speed up data movement to and from GPUs and storage. Other new features include High Bandwidth Memory (HBM) in the Intel Xeon Max series CPUs and support for Intel Optane Persistent Memory 300 Series. For this new platform, HEXADATA has products ready to get the most out of Xeon CPU-based systems that support fast PCIe Gen5 accelerators and Gen5 NVMe drives, in addition to support for high performant DDR5 memory.
Servers will run incredibly stable and have high-performance from liquid cooled components that operate well below CPU TDP.
A liquid cooled server with less fans and running at lower speeds can achieve the same performance as an air-cooled server while consuming less power.
Servers require a lot of high-speed, high noise fans. HEXADATA has found a way to reduce the noise by reducing the number of fans while using a liquid cooling solution.
The direct liquid cooling system supplier has 20 years of experience in cooling solutions for desktops PCs & data centers. HEXADATA has 20+ years of experience as well.
Liquid cooling solutions can be monitored with little need for maintenance. HEXADATA and liquid cooling suppliers have warranties to cover components.

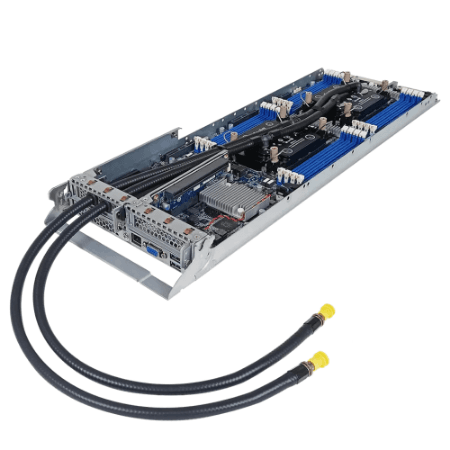

HEXADATA servers paired with a liquid cooling kit can be mounted in a rack or connected to a building’s water system. And offers quick/easy/dry disconnects.
Increase ROI while improving efficiency and performance
Increased IO throughput achieving 128GB/s bandwidth in PCIe x16 lanes
More tasks can be done simultaneously and faster with dedicated cores
Xeon Max CPUs for HPC and memory bound workloads
Increased memory throughput and higher DDR5 capacity per DIMM
Disaggregated compute architecture possible via Compute Express Link
HEXADATA servers are enabled with Automatic Fan Speed Control to achieve the best cooling and power efficiency. Individual fan speeds will be automatically adjusted according to temperature sensors strategically placed in the servers.
To take advantage of the fact that a PSU will run at greater power efficiency with a higher load, HEXADATA has introduced a power management feature called Cold Redundancy for servers with N+1 power supplies. When the total system load falls lower than 40%, the system will automatically place one PSU into standby mode, resulting in a 10% improvement in efficiency.
To prevent server downtime and data loss as a result of loss of AC power, HEXADATA implements SmaRT in all our server platforms. When such an event occurs, the system will throttle while maintaining availability and reducing power load. Capacitors within the power supply can supply power for 10-20ms, which is enough time to transition to a backup power source for continued operation.
SCMP is a HEXADATA patented feature which is deployed in servers with non-fully redundant PSU design. With SCMP, in the event of faulty PSU or overheated system, the system will force the CPU into an ultra-low power mode that reduces the power load, which prevents the system from unexpected shutdown and avoids component damage or data loss.
If the ROM that stores the BMC and BIOS fails to boot, the system will reboot with the backup BMC and/or BIOS replacing the primary. Once the primary BMC is updated, the ROM of the backup BMC will automatically update the backup through synchronization. For the BIOS, it can be updated based on user's choice of firmware version.
For hardware-based authentication, the passwords, encryption keys, and digital certificates are stored in a TPM module to prevent unwanted users from gaining access to your data. HEXADATA TPM modules come in either a Serial Peripheral Interface or Low Pin Count bus.
Clipping mechanism secures the drive in place. Install or replace a new drive in seconds.
HEXADATA offers servers that feature an onboard OCP 3.0 slot for the next generation of add on cards. Advantages of this new type include:
Simply slot in or pull out the card, without opening the server or using tools
Horizontal position and optimal heat sink design allow for air cooling to eliminate the heat efficiently
